Step 1

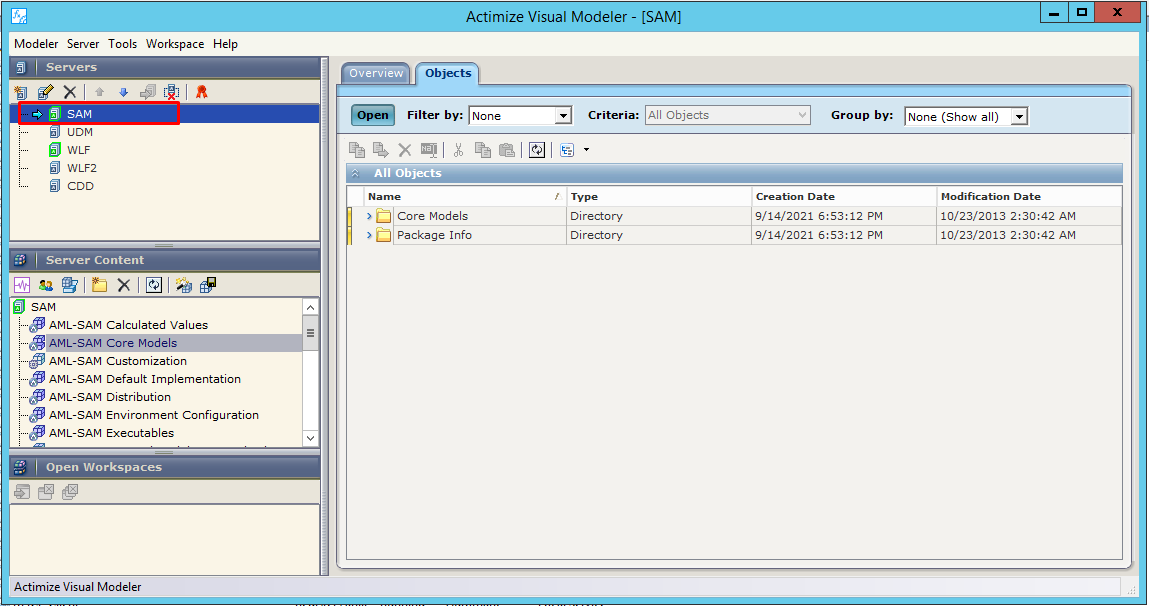

Open Visual Modeler from your AIS server

Connect to any instance which you want to check, in this example we will connect to SAM instance.


Step 2

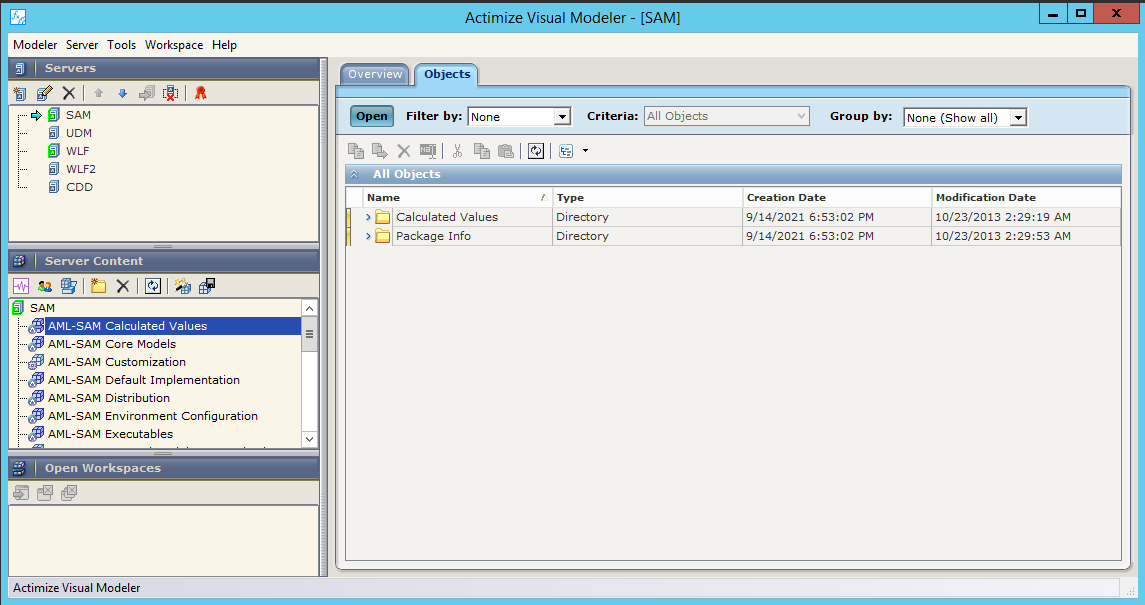

From Server Content below contain packages from SAM solution, double click on any of packages, in this example we will open from AML-SAM Calculated Value.


Step 3

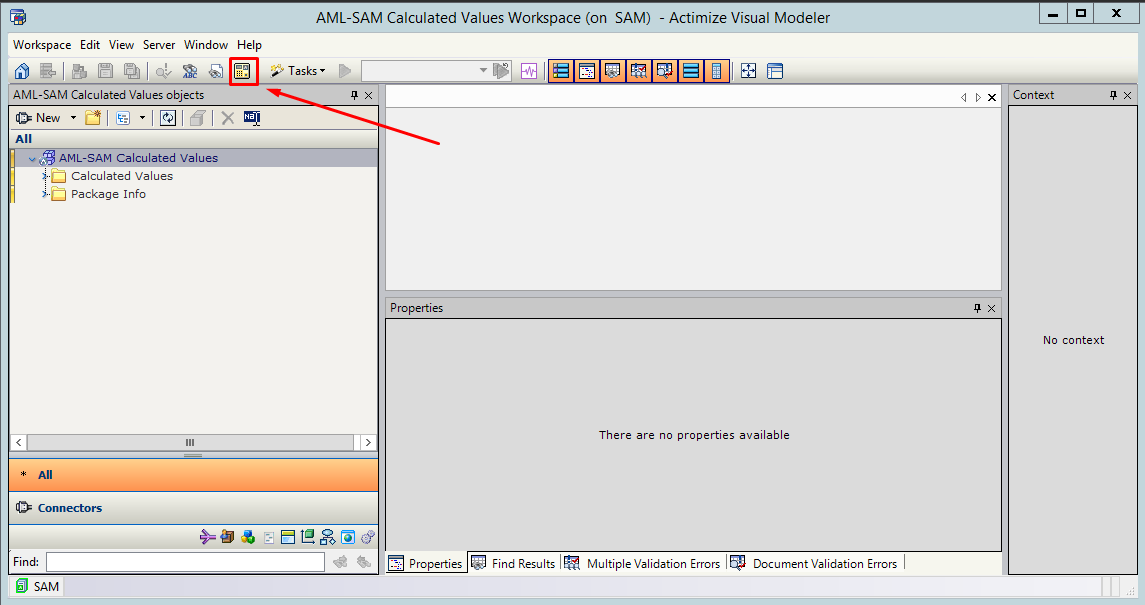

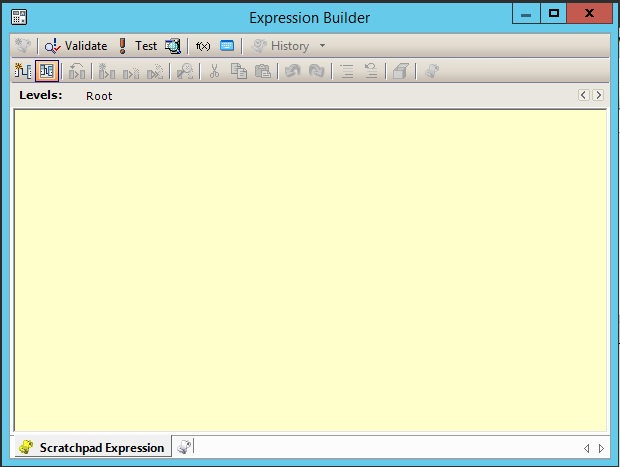

New workspace window will open as seen below, and you can find "Expression Builder", click on it to open Expression Builder windows

Step 4

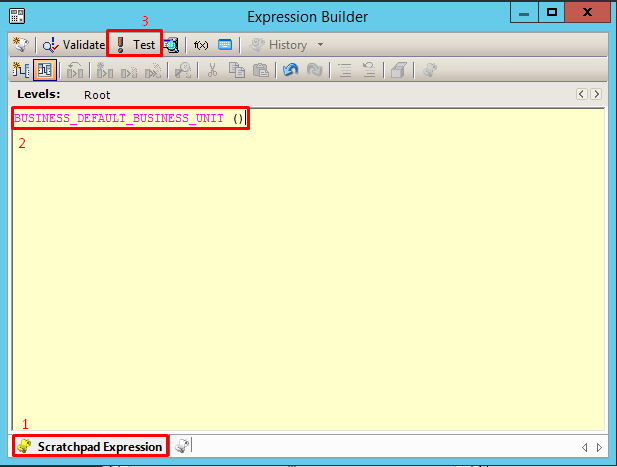

  1. Make sure you select Scratchpad Expression tab below Expression Builder window
  2. Type manually / copy the syntax you want to execute
  3. Click on Test

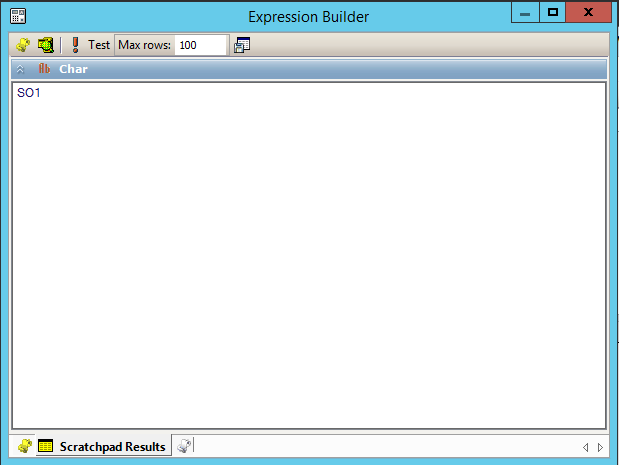

  4. The result will be dispayed in Scratchpad Results tab
