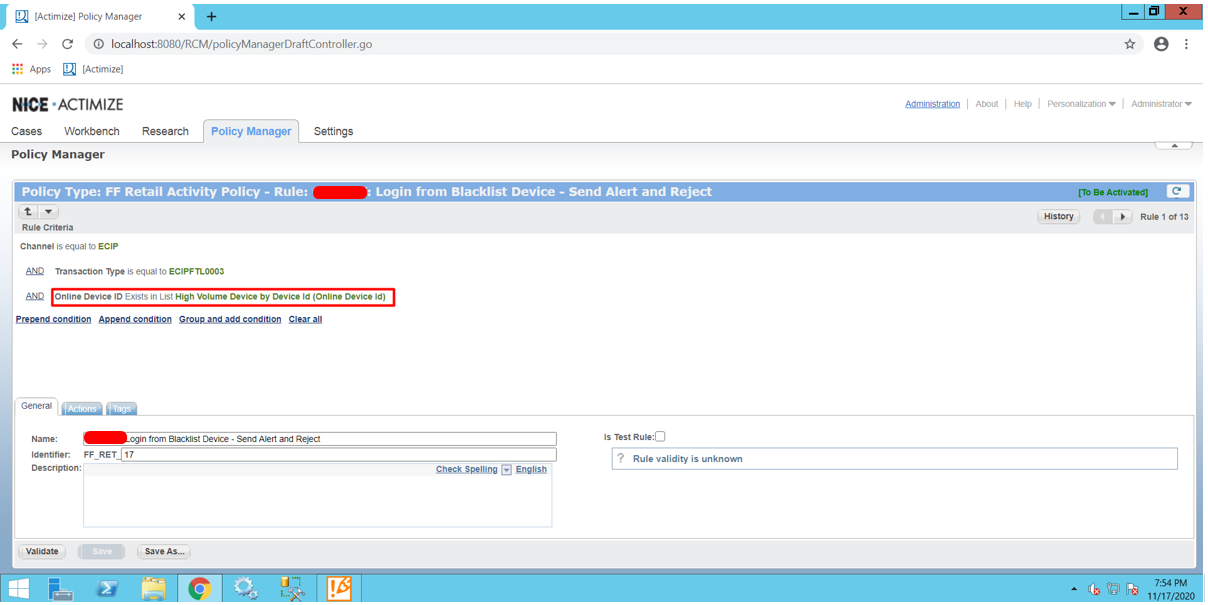

We will find out the mapping of this Online Device ID field

Open RCM Designer - Policy Manager

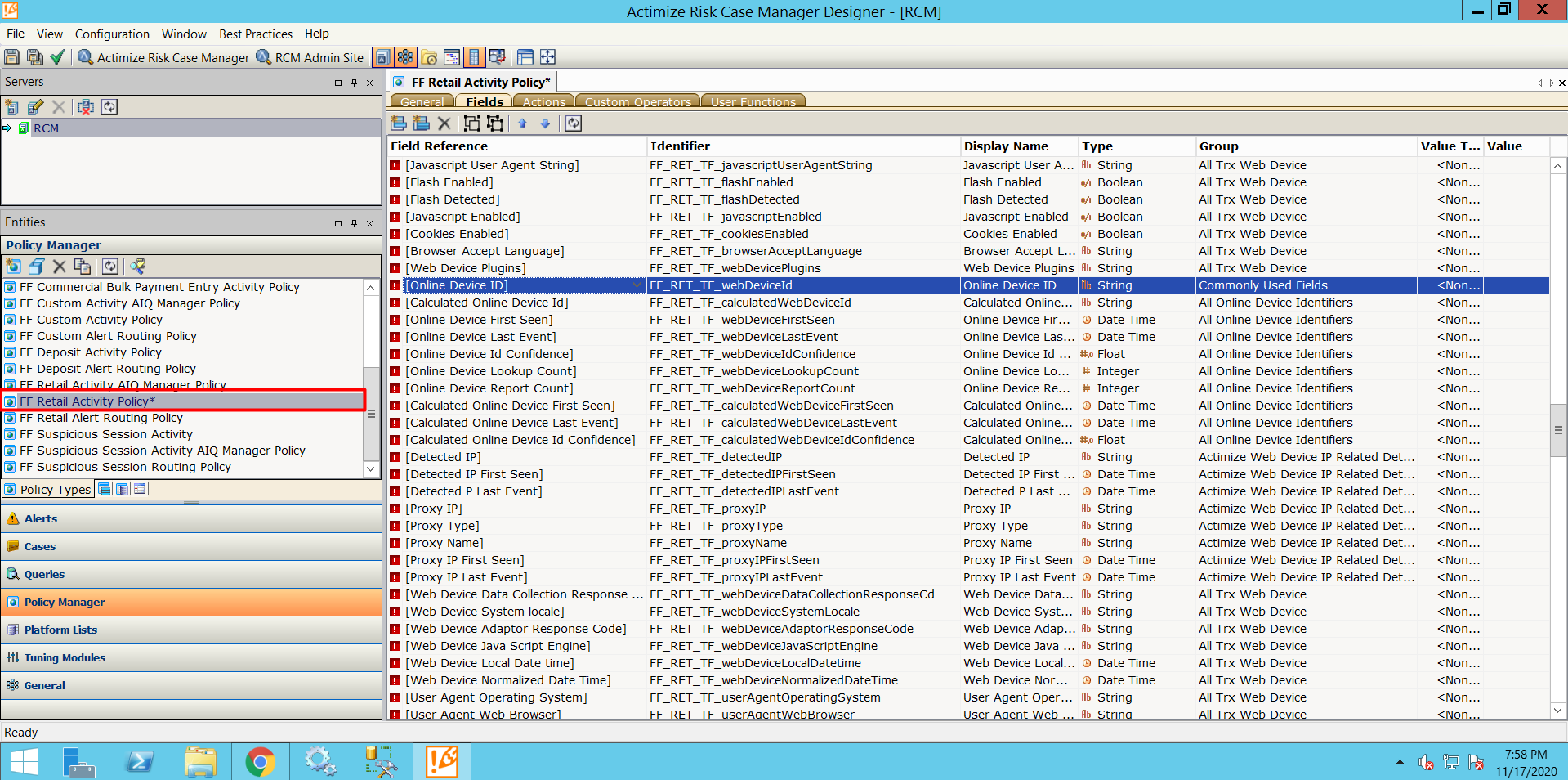

Find FF Retail Activity Policy and find Online Device ID field as shown below

Take a not for the identifier

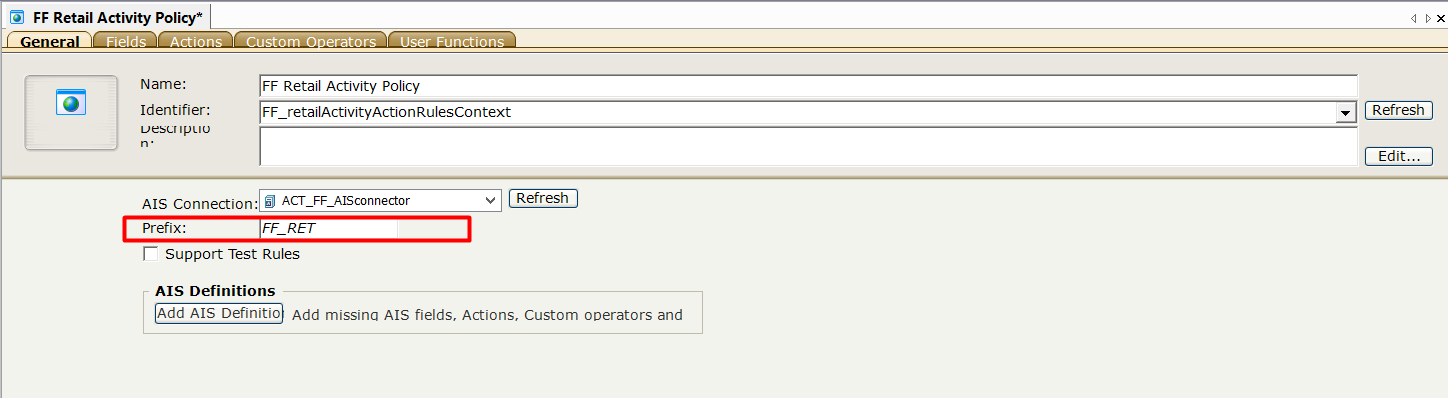

Identifiers consist of prefix and fieldId, for this particular policy rule, the prefix is FF_RET. So, the fieldId is TF_webDeviceID

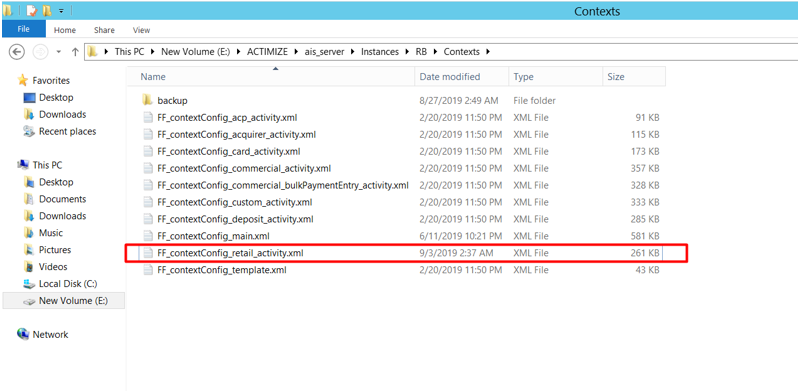

Open context folder E:\ACTIMIZE\ais_server\Instances\RB\Contexts, find context according to policy type

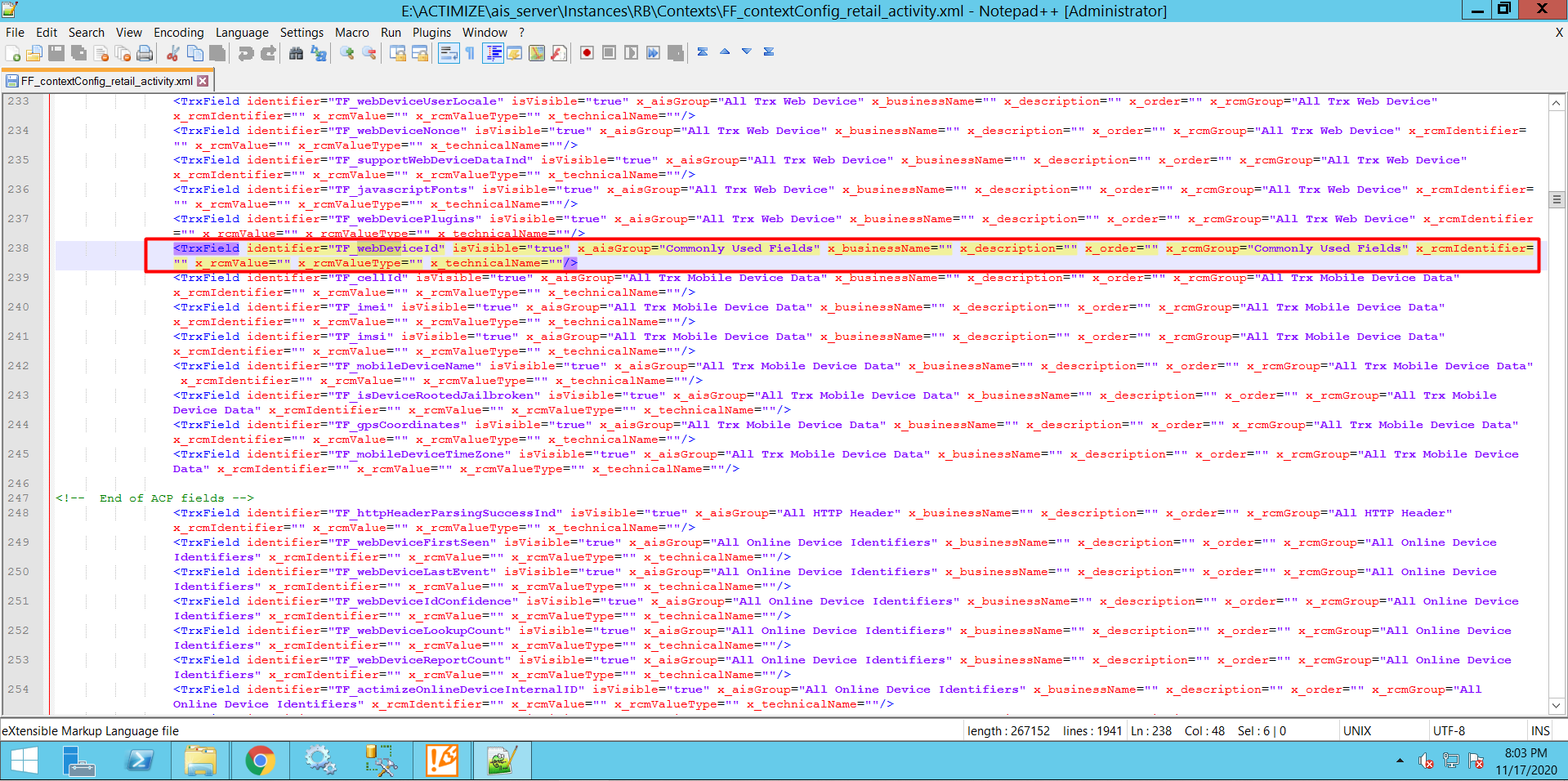

Find fieldId=TF_webDeviceID

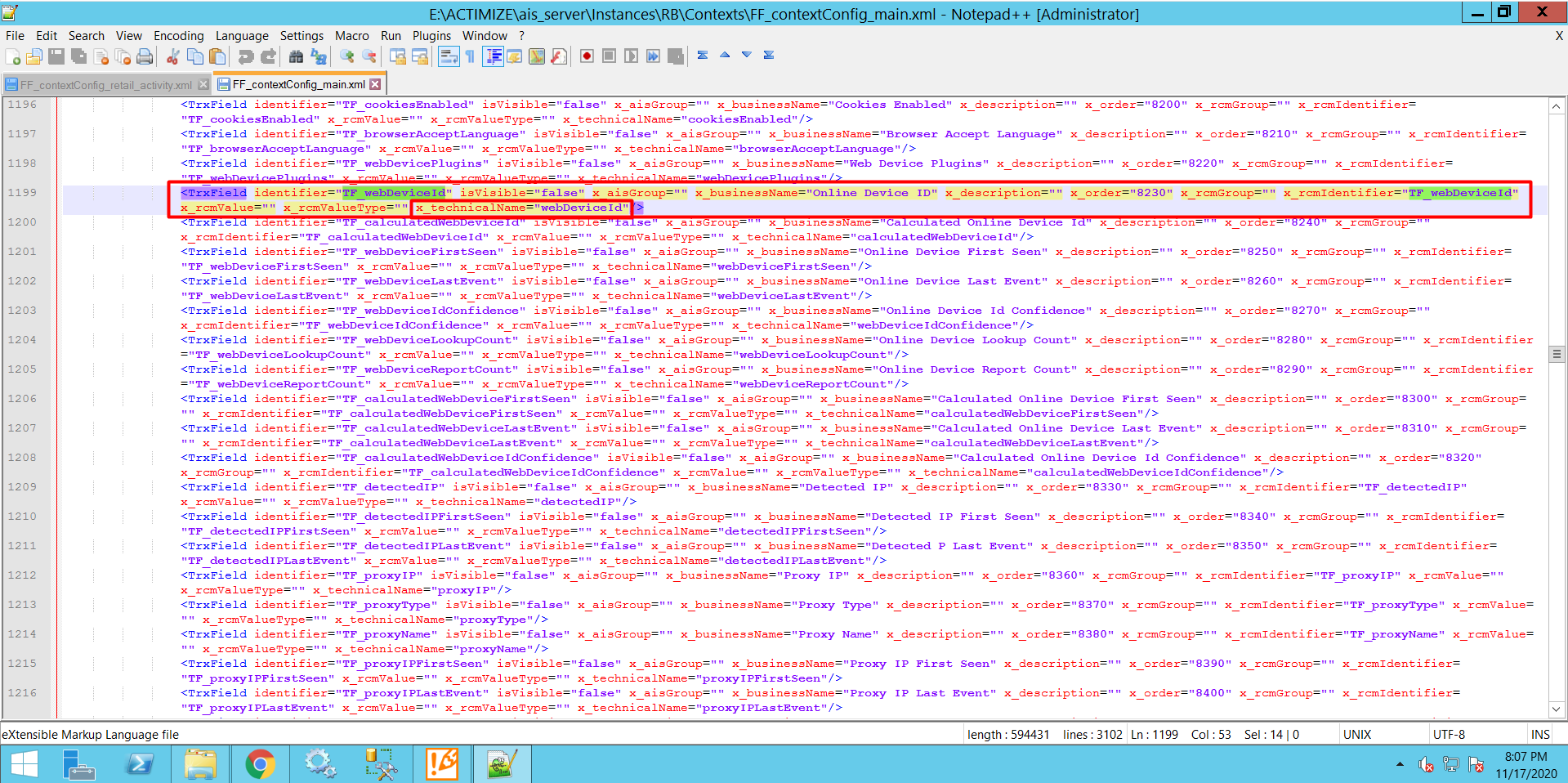

 Open FF_contextConfig_main.xml to find which field in database mapped to the policy field

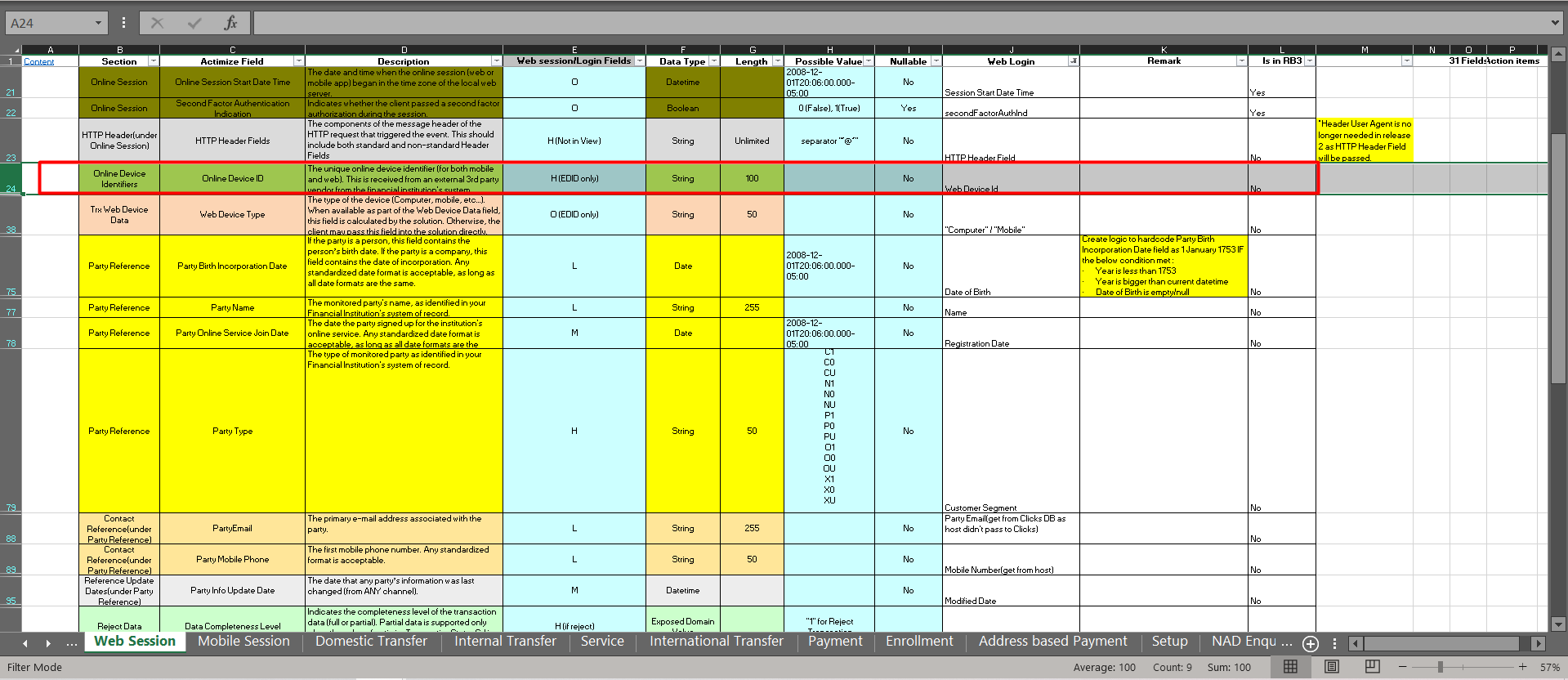

Check mapping for which field in xml request, we can check into data mapping as follow

Means for OnlineDeviceID field
